Solid Carbide Micro Drills : BMD-87

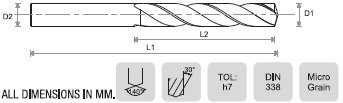

PRODUCT CODE DRILL DIA FLUTE LENGTH OVERALL LENGTH SHANK DIA
D1 L2 L1 D2
BMD-87-050 0.50 6 22 0.50
BMD-87-055 0.55 7 24 0.55
BMD-87-060 0.60 8 26 0.60
BMD-87-065 0.65 8 26 0.65
BMD-87-070 0.70 9 28 0.70
BMD-87-075 0.75 9 28 0.75
BMD-87-080 0.80 10 30 0.80
BMD-87-085 0.85 10 30 0.85
BMD-87-090 0.90 11 32 0.90
BMD-87-095 0.95 11 32 0.95
BMD-87-100 1.00 12 34 1.00
BMD-87-105 1.05 12 34 1.05
BMD-87-1.1 1.10 14 36 1.10
BMD-87-115 1.15 14 36 1.15
BMD-87-120 1.20 16 38 1.20
BMD-87-125 1.25 16 38 1.25
BMD-87-130 1.30 16 38 1.30
BMD-87-135 1.35 18 40 1.35
BMD-87-140 1.40 18 40 1.40
BMD-87-145 1.45 18 40 1.45
BMD-87-150 1.50 20 43 1.50
BMD-87-160 1.60 20 43 1.60
BMD-87-170 1.70 20 43 1.70
BMD-87-180 1.80 22 46 1.80
BMD-87-190 1.90 22 46 1.90
BMD-87-200 2.00 24 49 2.00
BMD-87-210 2.10 24 49 2.10
BMD-87-220 2.20 27 53 2.20
BMD-87-230 2.30 27 53 2.30
BMD-87-240 2.40 30 57 2.40
BMD-87-250 2.50 30 57 2.50
BMD-87-260 2.60 30 57 2.60
BMD-87-270 2.70 33 61 2.70
BMD-87-280 2.80 33 61 2.80
BMD-87-290 2.90 33 61 2.90

All Dimensions in MM

Also offered on request in :

  • Inches sizes and intermediate sizes.
  • Specific tolerances.
  • Left hand/right hand helix.
  • High / low helix angle.
  • Drill point geometry to suit application.
  • Special coatings to enhance tool life.
  • Shorter and longer flute length and overall length.
  • Bigger shank diameters.
