Solid Carbide Hole Mills : BHM - 04

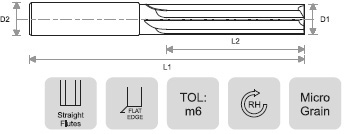

PRODUCT CODE HOLE MILL DIA FLUTE LENGTH OVERALL LENGTH SHANK DIA
D1 L2 L1 D2
BHM-04-015 1.5 12 40 4.0
BHM-04-020 2.0 12 40 4.0
BHM-04-025 2.5 14 50 4.0
BHM-04-030 3.0 15 60 4.0
BHM-04-040 4.0 18 60 4.0
BHM-04-050 5.0 20 75 6.0
BHM-04-060 6.0 25 80 6.0
BHM-04-070 7.0 30 85 8.0
BHM-04-080 8.0 30 85 8.0
BHM-04-090 9.0 35 90 10.0
BHM-04-100 10.0 35 100 10.0
BHM-04-110 11.0 40 100 12.0
BHM-04-120 12.0 40 100 12.0
BHM-04-130 13.0 40 100 14.0
BHM-04-140 14.0 40 100 14.0
BHM-04-150 15.0 45 100 16.0
BHM-04-160 16.0 45 100 16.0
BHM-04-170 17.0 45 100 18.0
BHM-04-180 18.0 45 100 18.0
BHM-04-190 19.0 45 100 20.0
BHM-04-200 20.0 45 100 20.0
BHM-04-220 22.0 45 100 22.0
BHM-04-230 23.0 45 100 22.0
BHM-04-240 24.0 45 100 24.0
BHM-04-250 25.0 45 100 25.0
BHM-04-300 30.0 60 120 30.0
BHM-04-360 36.0 80 150 36.0

All Dimensions in MM

Also offered on request in :

  • Inches sizes and intermediate sizes.
  • Specific tolerance.
  • Left hand/right hand helix/straight flutes.
  • High/low helix angle and special helix.
  • Special corner chamfer/radius.
  • Special End cutting geometry.
  • Through coolant.
  • Various numbers of flutes.
  • Special coatings to enhance tool life.
  • Lugged design for bigger diameters.
