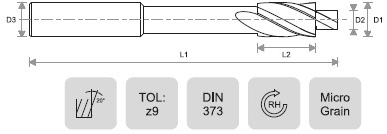

Solid Carbide Counter Bores : BCB - 05

PRODUCT CODE FOR THREAD CUTTING DIA PILOT DIA LENGTH OVERALL LENGTH SHANK DIA TEETH
D1 D2 L2 L1 D3 Z
BCB-05-010 M1 2.2 1.1 7.0 45 2.2 2
BCB-05-012 M 1,2 2.5 1.3 7.0 45 2.5 2
BCB-05-016 M 1,6 3.3 1.7 10.0 56 3.3 2
BCB-05-017 M 1,7 3.8 1.8 10.0 56 3.8 2
BCB-05-020 M 2 4.3 2.2 10.0 56 4.3 2
BCB-05-026 M 2,6 5.5 2.8 14.0 71 5.0 3
BCB-05-030 M 3 6.0 3.2 14.0 71 5.0 3
BCB-05-035 M 3,5 6.5 3.7 14.0 71 5.0 3
BCB-05-040 M 4 8.0 4.3 14.0 71 5.0 3
BCB-05-050 M 5 10.0 5.3 18.0 80 8.0 3
BCB-05-060 M 6 11.0 6.4 18.0 80 8.0 3
BCB-05-080 M 8 15.0 8.4 22.0 100 12.5 3
BCB-05-100 M 10 18.0 10.5 22.0 100 12.5 3
BCB-05-120 M 12 20.0 13.0 22.0 100 12.5 3
BCB-05-140 M 14 24.0 15.0 30.0 120 16.0 3
BCB-05-160 M 16 26.0 17.0 35.0 120 16.0 3
BCB-05-180 M 18 30.0 19.0 35.0 120 16.0 3
BCB-05-200 M 20 33.0 21.0 40.0 140 20.0 3
BCB-05-220 M 22 36.0 23.0 40.0 140 20.0 3
BCB-05-240 M 24 40.0 25.0 40.0 140 25.0 4

All Dimensions in MM

Also offered on request in :

  • Inches sizes and intermediate sizes.
  • Sizes for different tapping drilled holes for thread like BSW, UNC, UNF, etc.
  • Specific tolerances.
  • Interchangeable pilot/without pilot.
  • Left hand/right hand helix/straight flutes.
  • High/low helix angle and special helix.
  • Special corner chamfer/radius.
  • Special pilot length and diameter.
  • Through Coolant.
  • Various numbers of flutes.
  • Special coatings to enhance tool life.
  • Lugged design for bigger diameters.
  • Special shank (Weldon, whistle notch, taper, etc.)
