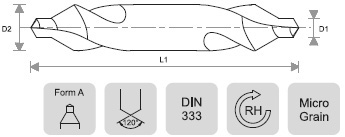

Solid Carbide Centre Drills (FORM A) : BCD-97
| PRODUCT CODE | PILOT DIA | BODY DIA | OVERALL LENGTH |
|---|---|---|---|
| D1 | D2 | L1 | |
| BCD-97-0050 | 0.5 | 3.15 | 25 |
| BCD-97-0080 | 0.8 | 3.15 | 25 |
| BCD-97-0100 | 1 | 3.15 | 32 |
| BCD-97-0125 | 1.25 | 3.15 | 32 |
| BCD-97-0160 | 1.6 | 4.0 | 35 |
| BCD-97-0200 | 2 | 5.0 | 40 |
| BCD-97-0250 | 2.5 | 6.3 | 45 |
| BCD-97-0315 | 3.15 | 8.0 | 50 |
| BCD-97-0400 | 4 | 10.0 | 56 |
| BCD-97-0500 | 5 | 12.5 | 63 |
| BCD-97-0630 | 6.3 | 16.0 | 71 |
| BCD-97-0800 | 8 | 20.0 | 80 |
| BCD-97-1000 | 10 | 25.0 | 100 |
| BCD-97-1250 | 12.5 | 31.5 | 125 |
| BCD-97-3/64 | 3/64” | 1/8” | 1-1/2” |
| BCD-97-1/16 | 1/16” | 3/16” | 1-3/4” |
| BCD-97-3/32 | 3/32” | 1/4” | 2” |
| BCD-97-1/08 | 1/8” | 5/16” | 2-1/4” |
| BCD-97-3/16 | 3/16” | 7/16” | 2-1/2” |
| BCD-97-1/04 | 1/4” | 5/8” | 3” |
| BCD-97-5/16 | 5/16” | 3/4” | 3-1/4” |
All Dimensions in MM
Also offered on request in :
- Intermediate sizes.
- Left hand/right hand cutting.
- Helical/straight flutes.
- Other drill point angles, counter sink angle/radius.
- Other step length for pilot
- Drill point geometry to suit application.
- Special coatings to enhance tool life.
- Other counter sink profiles.
- Extended length.
- Single sided.
- Lugged design for bigger body diameters.
- Special shank (Weldon, etc.)
