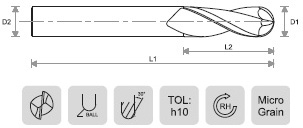

Solid Carbide 2 Flute Ball Nose Endmills : BBM-53 Extra Long Series
| PRODUCT CODE | CUTTING DIA | CUTTING EDGE LENGTH | OVER ALL LENGTH | SHANK DIA |
|---|---|---|---|---|
| D2 | L2 | L2 | D2 | |
| BBM-53-030 | 3.0 | 20 | 75 | 3.0 |
| BBM-53-040 | 4.0 | 25 | 75 | 4.0 |
| BBM-53-050 | 5.0 | 30 | 75 | 5.0 |
| BBM-53-060 | 6.0 | 30 | 75 | 6.0 |
| BBM-53-070 | 7.0 | 40 | 100 | 7.0 |
| BBM-53-080 | 8.0 | 40 | 100 | 8.0 |
| BBM-53-090 | 9.0 | 40 | 100 | 9.0 |
| BBM-53-100 | 10.0 | 40 | 100 | 10.0 |
| BBM-53-120 | 12.0 | 45 | 150 | 12.0 |
| BBM-53-140 | 14.0 | 45 | 150 | 14.0 |
| BBM-53-160 | 16.0 | 65 | 150 | 16.0 |
| BBM-53-180 | 18.0 | 65 | 150 | 18.0 |
| BBM-53-200 | 20.0 | 65 | 150 | 20.0 |
| BBM-53-220 | 22.0 | 65 | 150 | 22.0 |
| BBM-53-250 | 25.0 | 65 | 150 | 25.0 |
| BBM-53-280 | 28.0 | 65 | 150 | 28.0 |
| BBM-53-320 | 32.0 | 65 | 150 | 32.0 |
| BBM-53-360 | 36.0 | 65 | 150 | 36.0 |
All Dimensions in MM
Also offered on request in :
- Intermediate diameters.
- Spherical head (240 Deg.)
- Various numbers of flutes.
- Special flute length and overall length.
- Left hand/right hand helix.
- Special neck diameter.
- Special neck length with taper for long reach.
- Special coatings to enhance tool life.
- Lugged design for bigger diameter.
- Special shank (Weldon, whistle notch, etc.)
